Ziegler RW-Crane for the security region TWENTE (the Netherlands)
06.
April
2017
|
Vehicle deliveries
Press releases
On 06.04.2017, Ziegler delivered three RW-Cranes to the security region Twente, the Netherlands. The vehicles went separately to the fire brigades of Hengelo, Almelo and Enschede. One vehicle for each fire brigade.

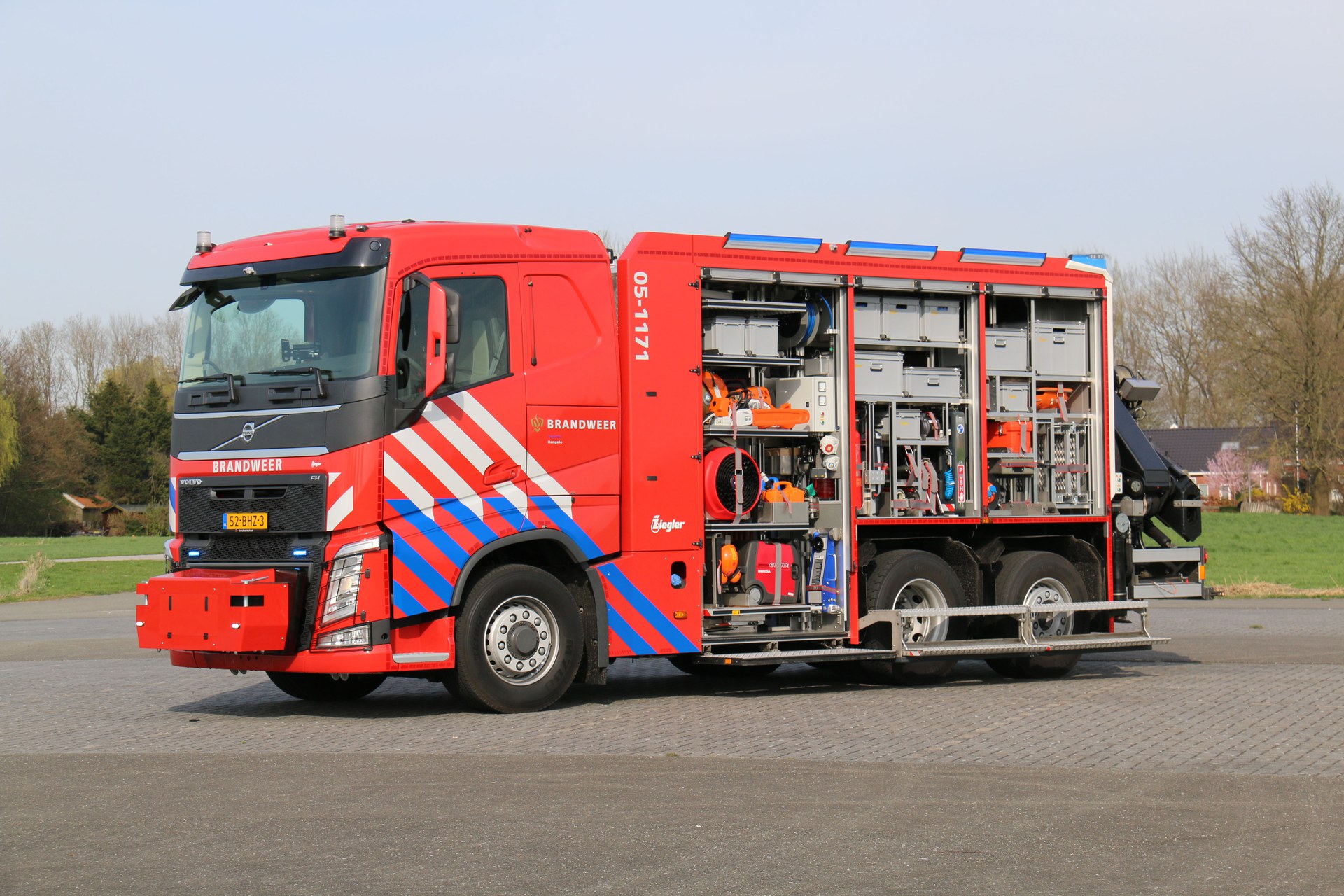

Chassis:
- Volvo FH 420 6x2
- Wheelbase 3.700 + 1.370 mm
- Steered rear axle
- Air suspension
- Powertronic automatic transmission
- Cabin with 3 or 4 seats
- Terberg X-track hydraulically diven front wheels

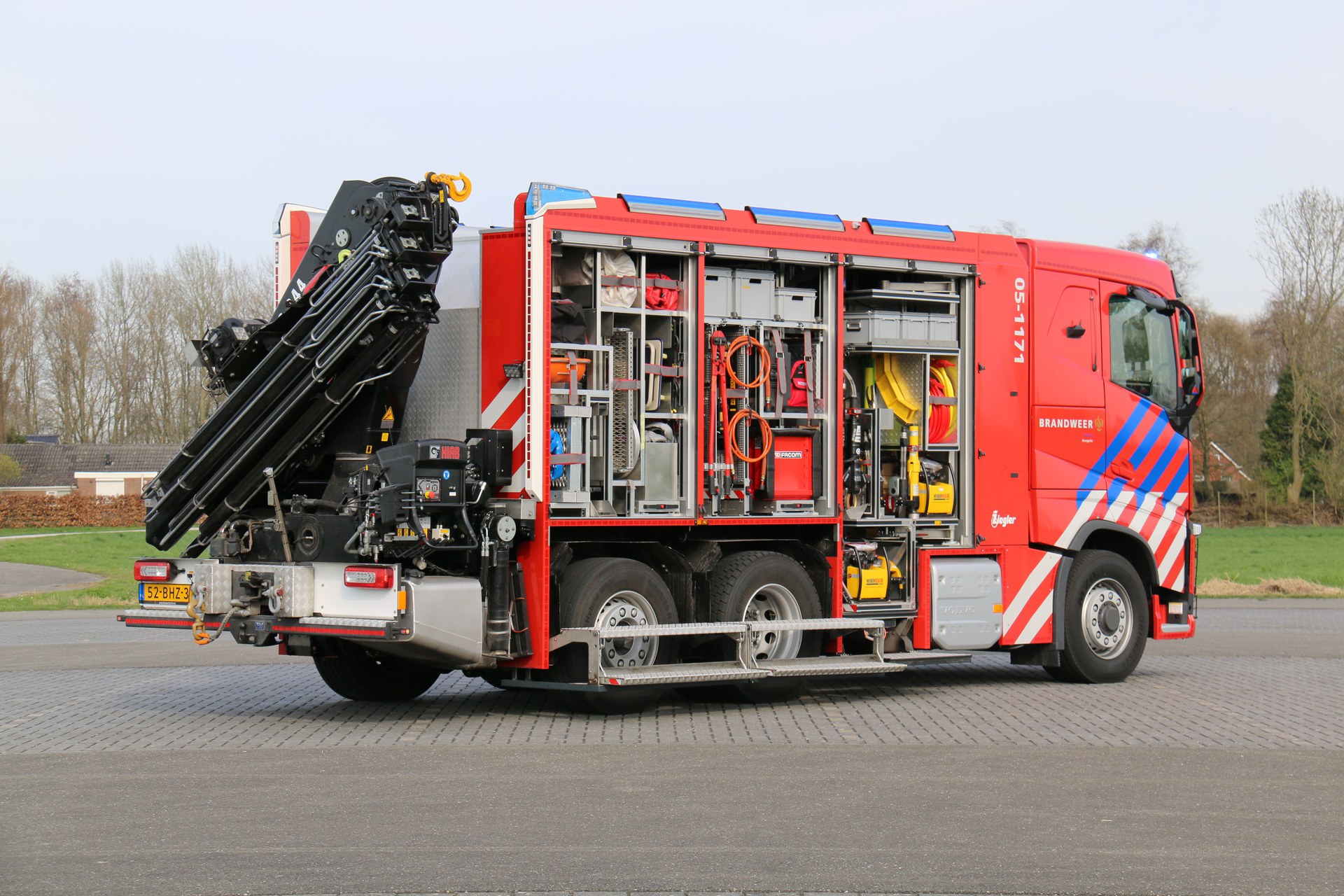

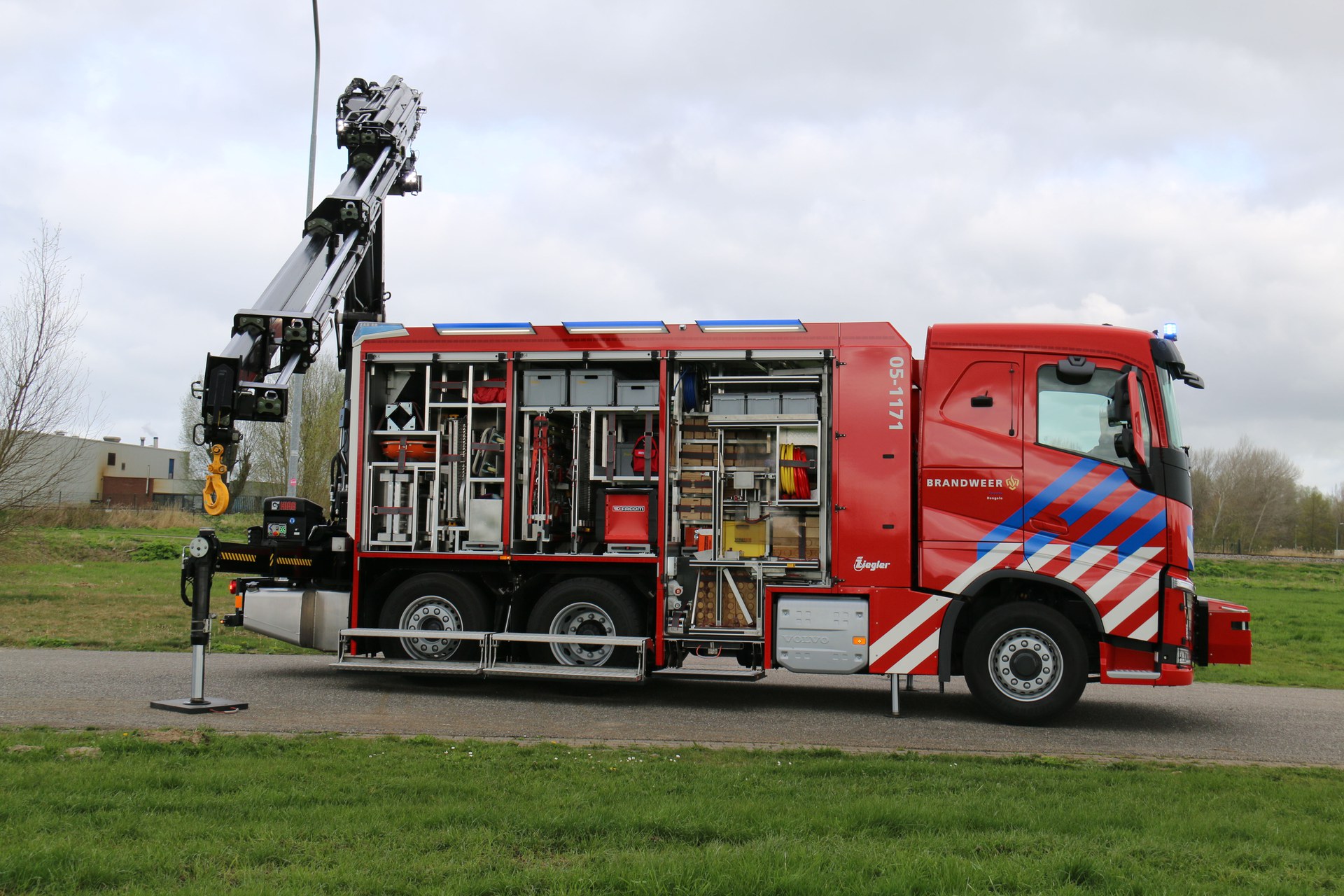

Superstructure:
- Ziegler ALPAS®-Superstructure
- Z-Vision lighting system
- Double footstep for ergonomic optimization
- Fireco light mast

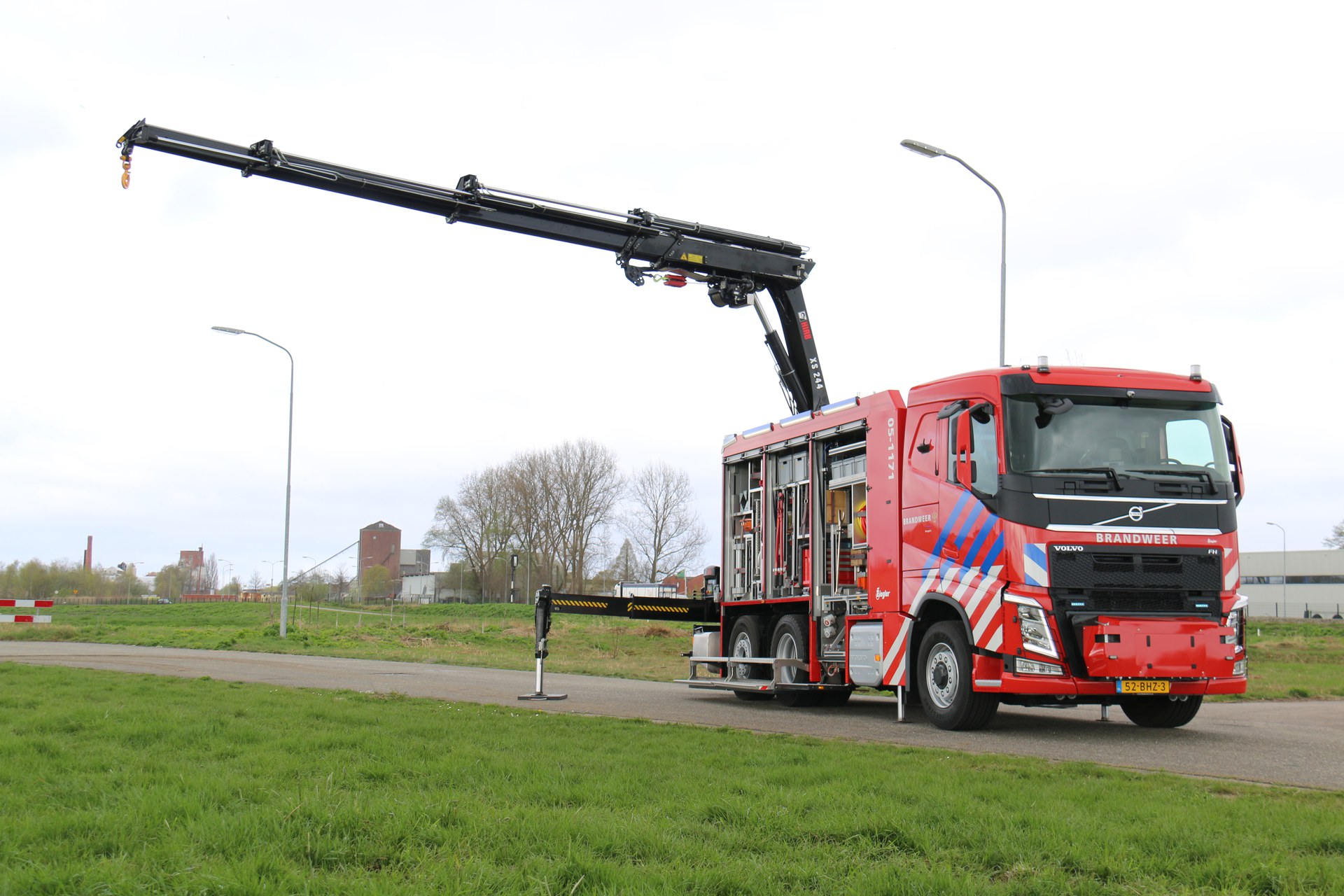

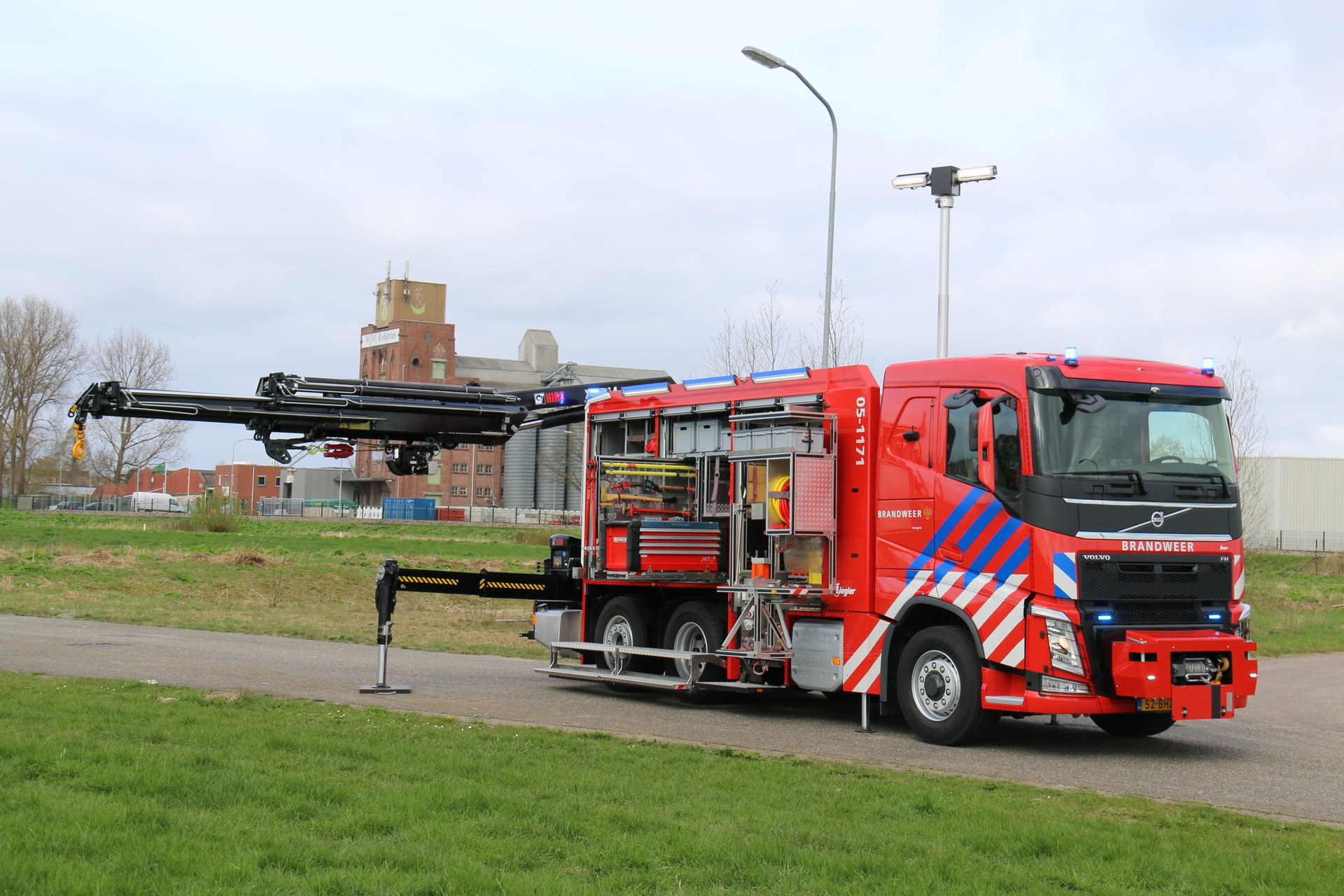

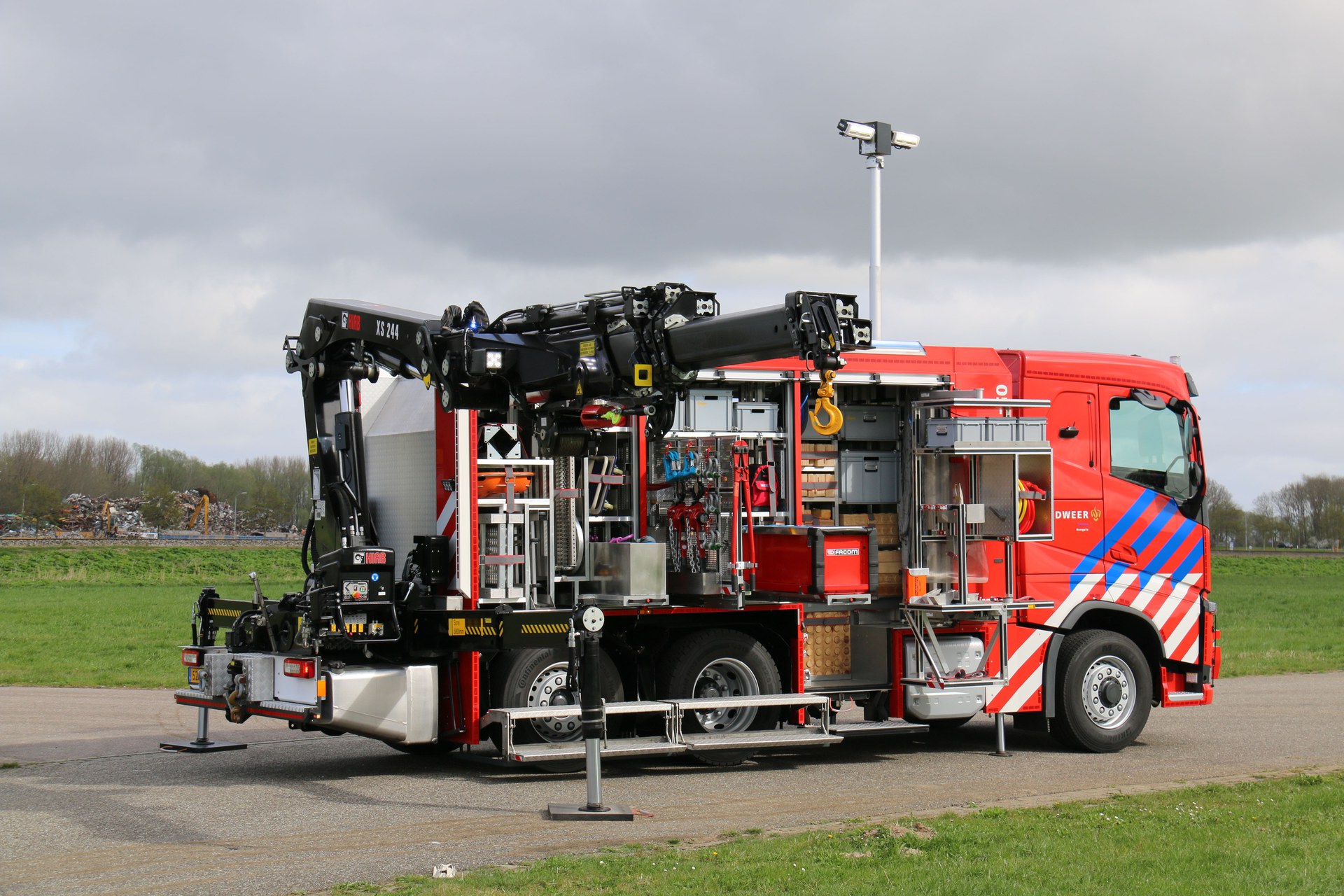

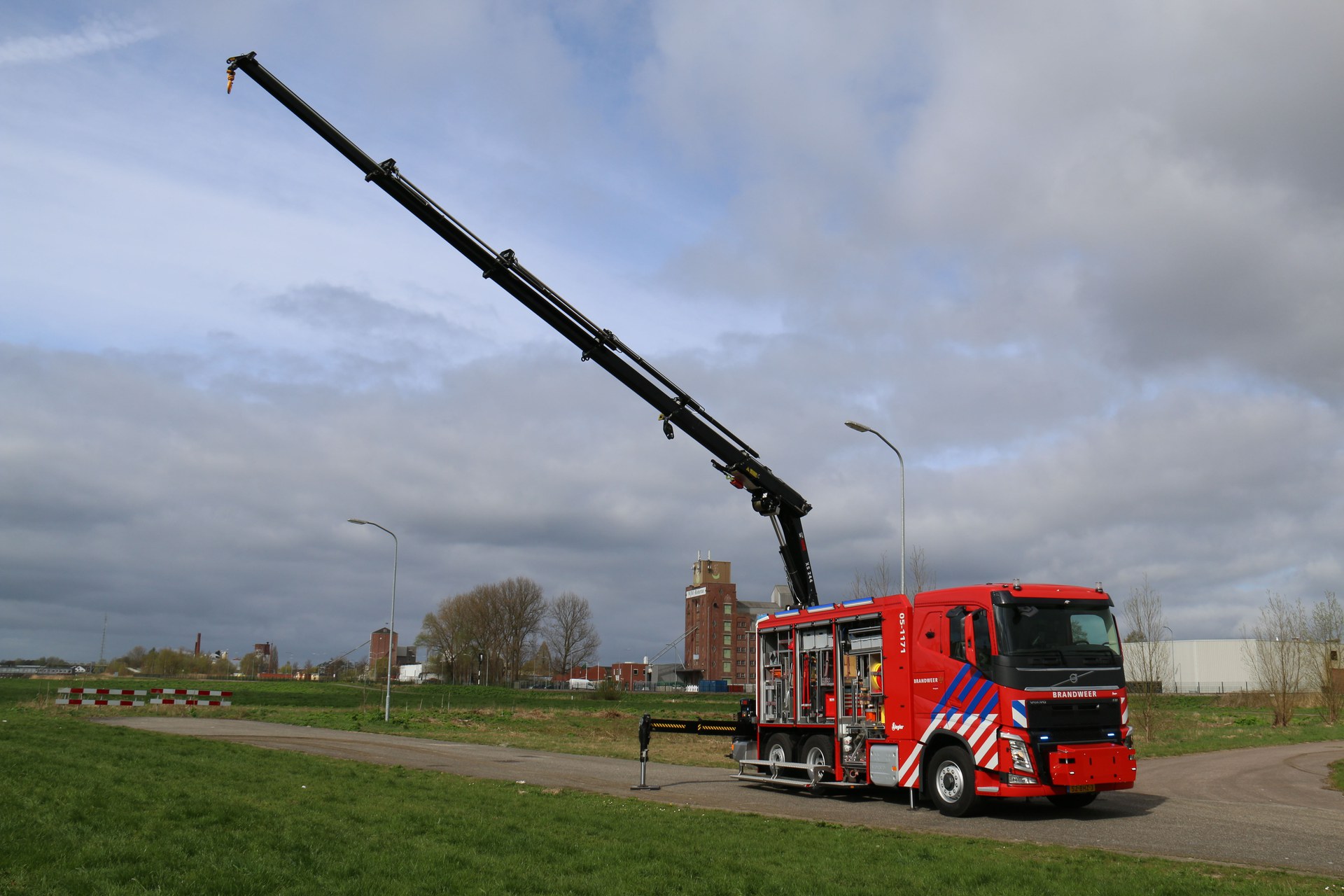

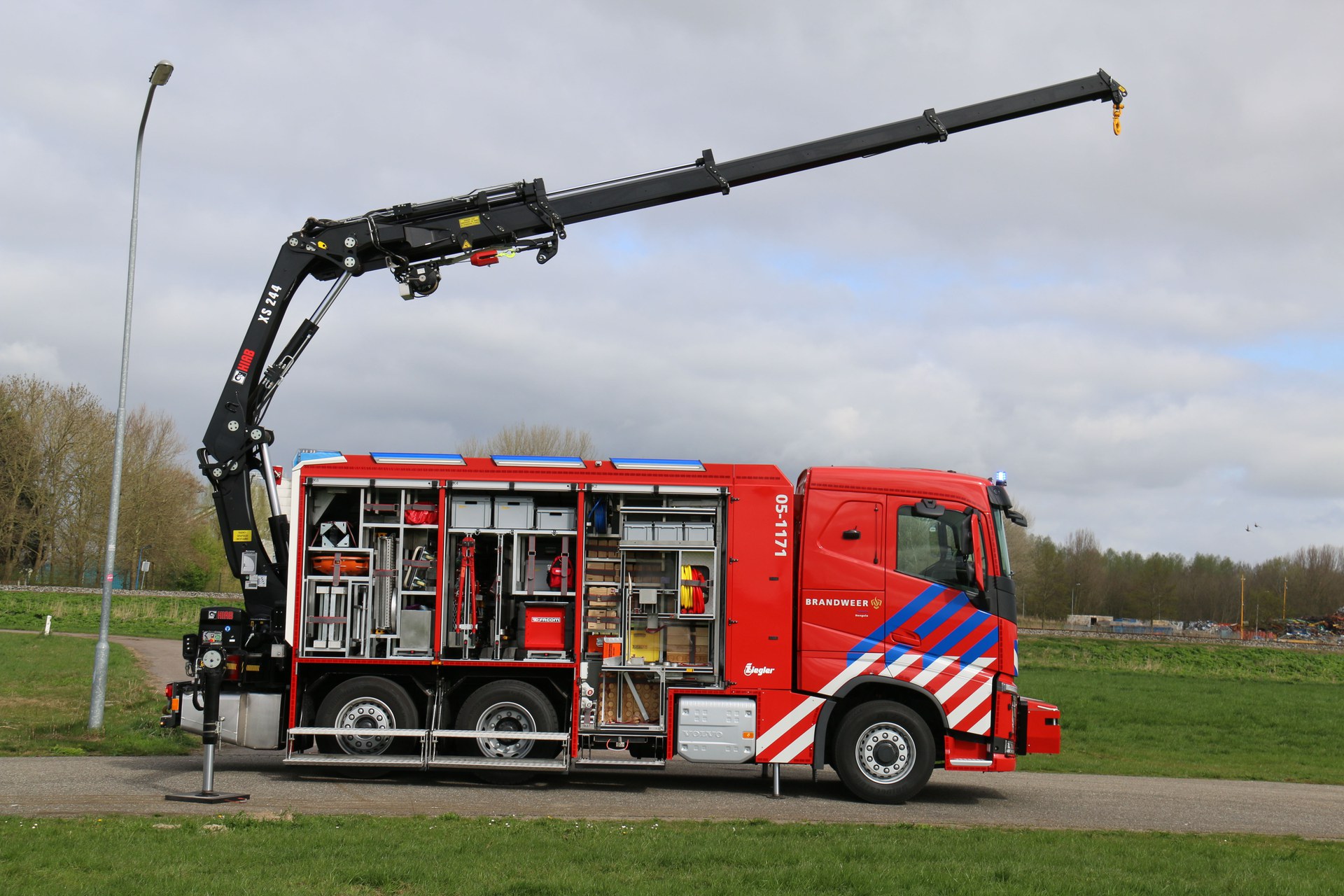

Crane:
- Hydraulic crane type Hiab
- Capacity: 22.25 mt
- Radius: 15.1 m
- Carried out with a hydraulic crane, cable length 50 m, capacity 1,935 - 2,650 kg
Winches:
- Hydraulic winch on the rear
- Constant power output 70 kN
- 50 m rope
- Electric winch on the front of the vehicle
- Maximum power 68 kN
- 25 m rope
- Can be operated via remote-control
Hydraulically driven generator 230 v / 400 v - 25 kVA
