Z-Foam
Proportioning Systems
Z-Foam proportioning systems enable firefighters to work efficiently and safely. With simple operation, flexible extinguishing options and space-saving design, it makes operations considerably easier.
Advantages
- Easy to use
One-button control with quick-start button for rapid deployment - Precise mixing ratio
Control unit guarantees consistent foam mixing, regardless of pressure or flow rate - Flexible application options
Suitable for all commercially available foam concentrates, from Class A to MOUSSOL - Powerful and efficient
Operation of powerful turrets up to 3,000 l/min with minimal pressure loss - Convenient handling
Automatic flushing function, display and filling possible during operation
Efficient, flexible and reliable in use
Z-Foam was developed to offer firefighters maximum efficiency and safety. It combines ease of use, flexible extinguishing options and an intelligent design that makes optimal use of the available space and facilitates deployment.
Simple and quick operation
The system is functional and self-explanatory. With the one-button control, foam can be deployed immediately – without any prior settings. This saves time and minimizes potential operating errors during use.
Flexible use of extinguishing agents
Z-Foam enables the simultaneous use of water and foam. This allows the extinguishing effect to be optimally adjusted without additional conversions or interruptions during use.
Space-saving and easy to maintain
The intelligent design makes efficient use of the available space in the equipment rooms and facilitates easy maintenance. In addition, the foam concentrate tank can also be filled during operation, ensuring continuous use without interruptions.
3 Product variants
FS 96
-
Highest performance level: up to 96 l/min delivery rate, suitable for large quantities of extinguishing agent
-
Easy operation: One-button control, automatic flushing function
-
Maximum flexibility: All foam agents, external suction connection
FS 24
-
Medium performance class: 24 l/min delivery rate of the foam pump
-
Intelligent display: Shows flow rate, mixing ratio, consumption and foam source
-
Wide performance range: Foam operation from 50 l/min, output via B, rapid intervention and turret
FS 12
-
Basic version: 12 l/min foam pump output, ideal for smaller vehicles or applications where less foam output is required
-
Wide compatibility: All common foam concentrates, external suction connection
-
Flexible system: Operation from 50 l/min, integration into pump system, space-saving
Foam proportioning system
With Z-Foam pressure proportioning systems, every fire can be fought effectively and economically.

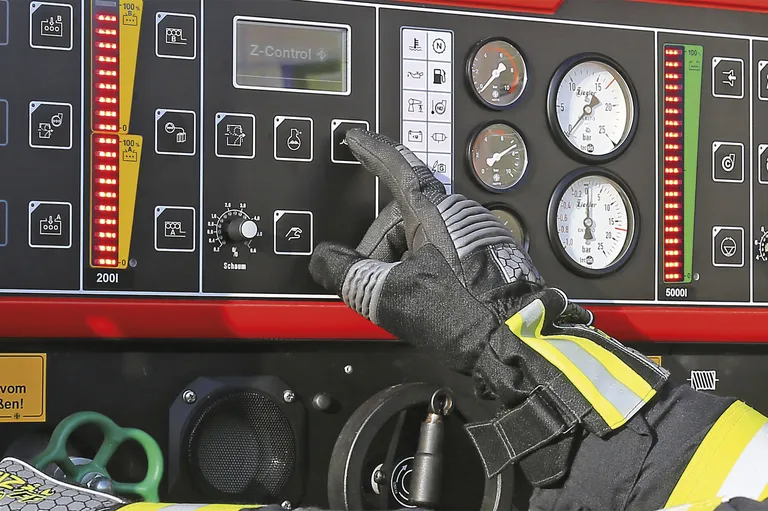

The electrically driven foam pumps with a maximum flow rate of 96, 24, or 12 l/min leave no one unimpressed. In conjunction with our proven Z‑Control, the Z‑Foam systems are convenient to operate and use. The self-explanatory foam proportioning system is intuitive to operate and foam can be dispensed at the touch of a button using the quick-action foam button.
The operator can decide whether to use foam concentrate from tank A, tank B, or an external foam concentrate source. The foam tanks integrated into the vehicle can also be filled during operation via a separate foam tank filling pump without interrupting the pressure proportioning. Thanks to the pressure-side proportioning of the foam concentrate, water can also be discharged via the remaining outlets during foam application, thereby reducing the flushing process to a minimum.
