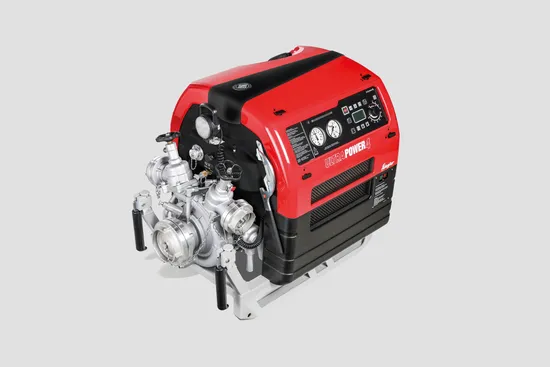

Ultra Power 4
Portable pump PFPN 10-1000 / 10-1500
The ZIEGLER Ultra Power 4 combines high delivery capacity, modern motor technology and maximum user-friendliness in a compact portable fire pump. Designed in accordance with DIN EN 14466, it impresses with its reliable performance, proven ZIEGLER pump technology and a design that sets standards worldwide.
-
Portable pump in accordance with DIN EN 14466 with 1,900 l at 10 bar pressure
-
Tried and tested ZIEGLER centrifugal fire pump with patented Trokomat venting technology
-
Automatic centrifugal clutch relieves the operator
-
Compact dimensions for optimal loading in a wide variety of vehicle types (also suitable for low-clearance applications)
-

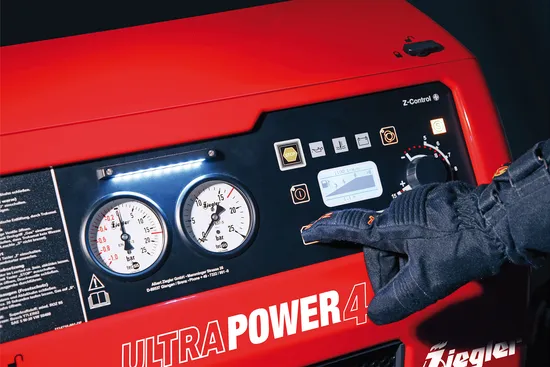

Intuitive Z-Control operation via glove-friendly control panel mounted on the side
-
Worldwide VW service and spare parts supply
Great, yet compact and easy to use

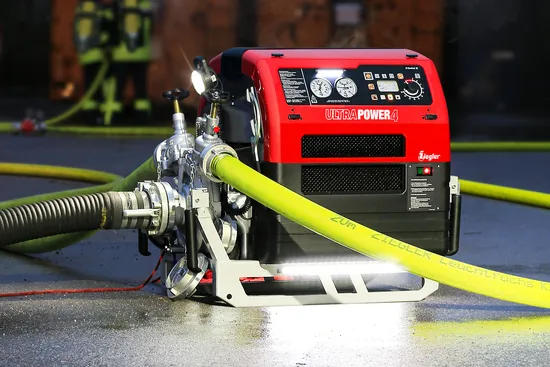

The Ultra Power 4 is a powerful portable fire pump with a modern VW 3-cylinder aluminum engine and electronic fuel injection (PFPN 10-1000 / 10-1500, tested in accordance with DIN EN 14466). Thanks to its automatic centrifugal clutch, speed limiter and the latest engine technology, it is environmentally friendly, low-vibration and smooth-running. The ergonomic control panel ensures easy handling, while its high performance bridges large differences in height and long distances without additional pumps.
Carrying frame
The carrying frame consists of an extremely sturdy light metal frame with four foldable and rotatable handles with rubberized cold protection.
Tourmat
The ZIEGLER Tourmat optimally relieves the operator by automatically adjusting the pump pressure when the water output changes.

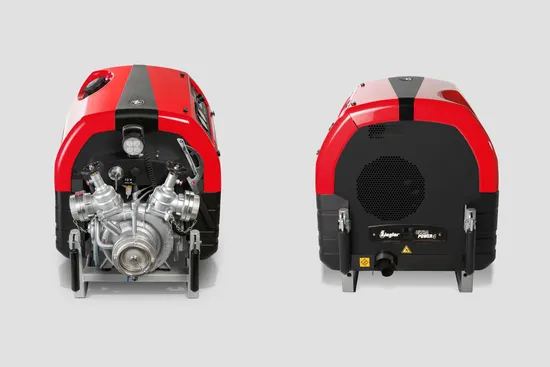

Compact external dimensions
The Ultra Power 4 has compact external dimensions of only L×W×H: 1,039 × 720 × 846 mm and an operating weight of approx. 188 kg.

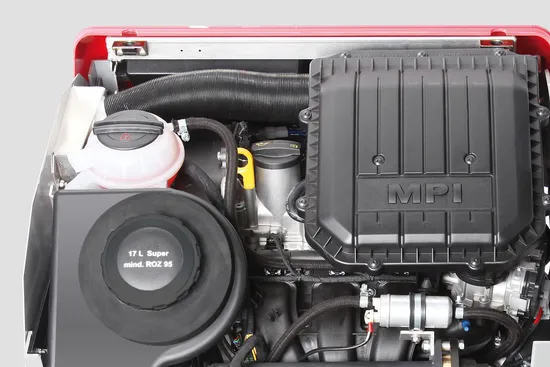

VW Engine
The VW four-cylinder aluminum engine in the Ultra Power 4 delivers 50 kW at 5,400 rpm and has a displacement of 999 cm3. With electronic fuel injection, a closed cooling circuit, maintenance-free valve train and integrated 17-liter fuel tank, it is reliable, efficient and environmentally friendly.
Environmentally friendly and quiet running
Thanks to automatic engagement via a centrifugal clutch, automatic speed limitation during the suction process and modern motor technology, the UP 4 is environmentally friendly, low-vibration and smooth-running. The high performance of the UP 4 means that large differences in height and long distances can be bridged without additional pumps.

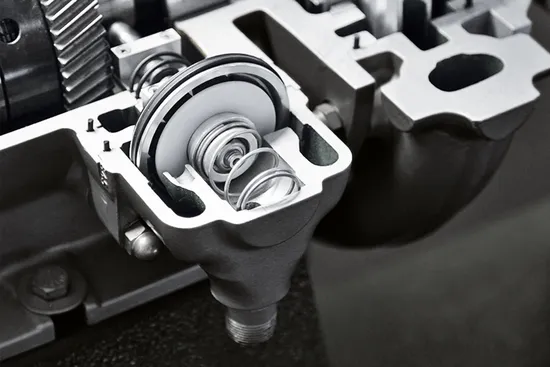

Trokomat
The operator only needs to press the accelerator; the patented Trokomat, which consists of just a few components, vents the pump fully automatically.
