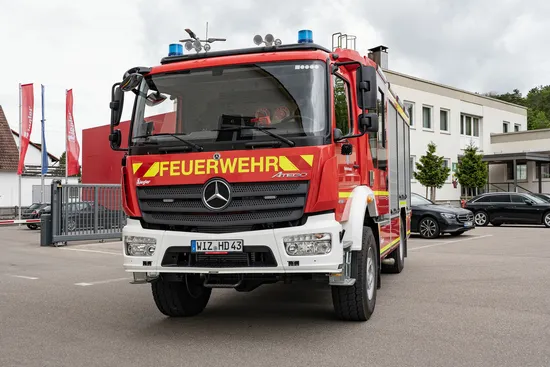

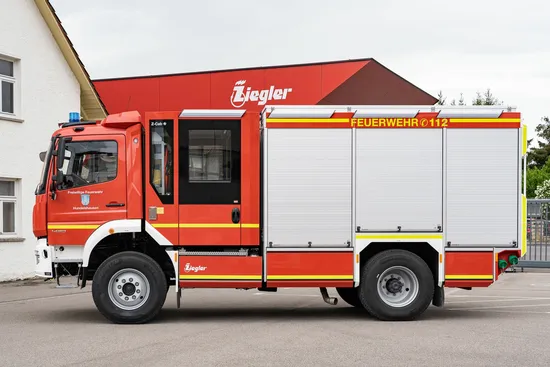

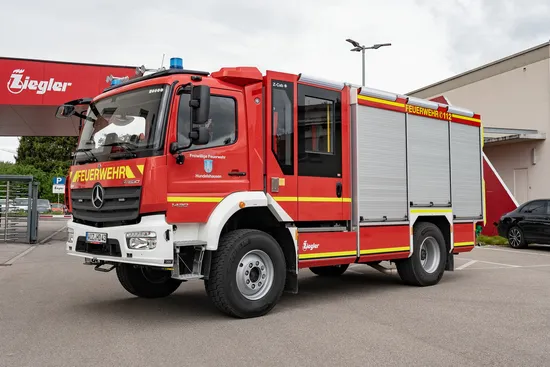

ZIEGLER LF 10 to the fire department of Hundelshausen

Our special features

These include, among others:

• ALPAS® superstructure of the latest generation

• Rear view camera

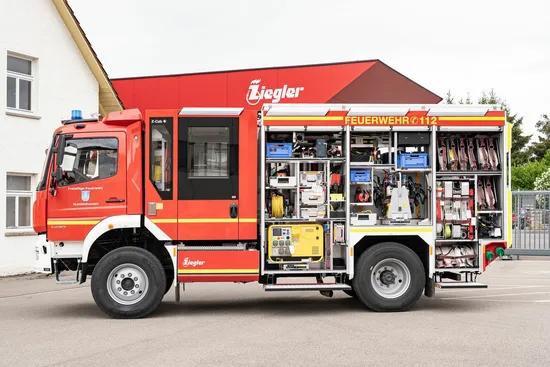

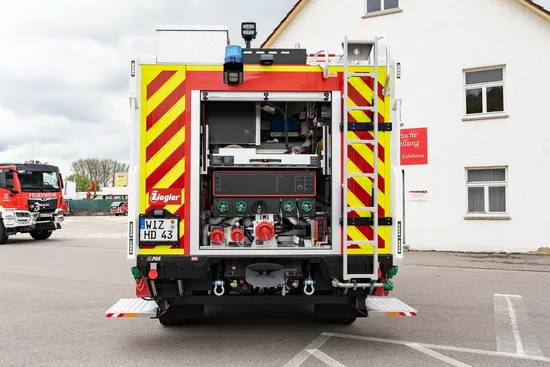

• Equipment locker GR with rear flap and integrated roller shutter

• Z-Control of the latest generation

• Pump & Roll operation FPN

• Pneumatic light mast with 8 LED lights

• Z-Vision LED ambient lighting

• LED front flash lights

• Maneuvering lights on the external mirrors

• Storage box between driver and passenger seat

• Z-Rack helmet holder between driver and passenger seat

Technical data of the vehicle

• DIN: 14530-5

• Wheelbase: 3,860 mm

• Engine power: 272 HP

• Max. permissible weight: 14,000 kg

• Vehicle dimensions (L×W×H): 7,300 × 2,500 × 3,300 mm

• Cabin / crew: Z-Cab / 1+8

• Pump type: FPN 10-2000

• Water tank: 1,200 l

We wish a safe trip at all times!

Highlights des Fahrzeugs

ALPAS

The patented ZIEGLER Aluminum Panel System is not only highly flexible, but also extremely stable and very durable. Firefighting vehicles with ALPAS superstructures are absolutely reliable tools in use – and a safe investment in the long term.

Learn more

Z-Cab

Greater comfort and safety for the crew: the Z-Cab has set new standards. The new generation redefines occupant protection: ZIEGLER is the first European manufacturer to install certified airbags and seatbelt tensioners in the crew cab of firefighting vehicles.

Learn more

Z-Vision

The Z-Vision lighting system with 4-chamber LED profile minimizes shadows in the work area. State-of-the-art signaling and lighting elements integrated into the front, sides and rear of the vehicle improve visibility.

Learn more

Z-Control

Clear, logical, easy to understand and safe to operate even when wearing protective clothing: these are the requirements that our Z‑Control operating concept fully meets. Z‑Connect provides the necessary networking.

Learn more
